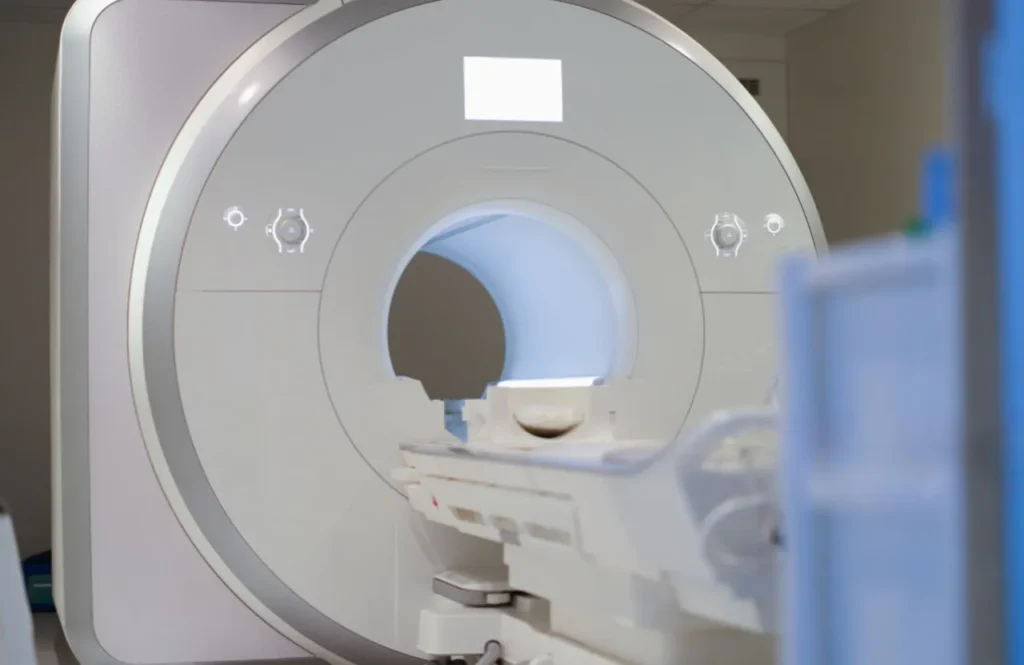

Low-Vibration Pump Motor Options for MRI Thermal Management
Motor family: induction / BLDC / PMSM depending on control and sealing architecture
Motor family: BLDC/PMSM + controller
Motor family: single-phase induction / variable frequency options
Platform Shortlist + Option Spec + Validation Plan + Risk Checklist
Fully non-ferromagnetic material structure prevents magnetic field disruption,Minimal flow fluctuation enables precise temperature control,IP68 rating (prevents coolant leakage for stable operation).
These platform families help us optimize within proven boundaries rather than forcing you into a fixed off-the-shelf model.
| Product Model | Rated power (HP) | Rated speed (r/min) | Rated torque (n· m) | frame size | Rated voltage (V) | Frequency (Hz) | Constant current (A) | Efficiency (η%) | Protection level |
|---|---|---|---|---|---|---|---|---|---|
|
BT16058LC1 |
0.5/0.75 |
2930/3470 |
2.0/2.5 |
56Y |
115 |
50/60 |
6.8/10.0 |
80.0/81.2 |
ODP |
|
BT16065LC1 |
0.66/1 |
2920/3470 |
2.7/3.4 |
56Y |
230 |
50/60 |
9.5/13.0 |
78.5/81.6 |
ODP |
|
BT16075EC1 |
1.1/1.5 |
2930/3490 |
4.0/4.5 |
56Y |
230 |
50/60 |
6.6/8.6 |
80.8/83.8 |
ODP |
|
VEV14075LCb |
1 |
3450 |
2.8 |
56J |
115/230 |
60 |
9.8/4.9 |
75.0 |
ODP |
|
VEV14095LCb |
1.5 |
3450 |
4.0 |
56J |
115/230 |
60 |
13.6/6.8 |
75.0 |
ODP |
Built Around Your Pump System — We are an application-custom partner.
torque margin for pump load; flow stability support
global voltage options; controller pairing when needed
shaft/seal interface, mounting envelope
sealing strategy support, cable exit, thermal protection
We verify these risks before mass production.
Temperature rise mapping in sealed/enclosed conditions
Direction check against residential targets.
Life simulation based on project definition.
IP concept verification with method definition
Get Template
sealing upgrades + endurance re-validation
electrical variants + consistent validation pack
minimal flow fluctuation direction support
“Non-magnetic” refers to materials that do not significantly interact with external magnetic fields and do not become magnetized during operation. In motor selection, this typically applies to shafts, fasteners, housings, and selected structural components rather than the electromagnetic core itself. The goal is to minimize magnetic interference, imaging distortion, or attraction forces in sensitive environments. Buyers should clarify which components must be non-magnetic and under what field strength conditions, as full non-magnetic construction is rarely required and often impractical.
IP68 is not a single fixed test but a set of project-defined conditions. Buyers must specify immersion depth, duration, fluid type, temperature, and pressure conditions relevant to real use. For medical modules, this often includes long-term immersion, cleaning agents, or pressure differentials during operation. Clear definition ensures the sealing strategy, materials, and validation tests match real exposure rather than a generic lab scenario.
Speed control becomes necessary when flow stability directly affects system performance, safety, or accuracy. BLDC or PMSM motors enable precise speed regulation under varying load or pressure, making them suitable for pumps and blowers requiring consistent flow. Induction motors are typically sufficient for constant-speed systems with stable load conditions. The choice depends on how sensitive the application is to flow fluctuation rather than motor type preference alone.
Accurate motor matching requires clear definition of mechanical, electrical, and environmental interfaces. Mandatory inputs include mounting dimensions, shaft specifications, load direction, voltage and frequency, duty cycle, ambient conditions, and target lifetime. Without these baseline drawings and data, motor selection relies on assumptions that often lead to noise, thermal, or reliability issues later in the program.
