To ensure peak performance in Residential and Commercial Air Conditioning, we provide application-specific configuration paths. Every drive solution is refined for AC units—prioritizing thermal stability in compact enclosures and zero-drift precision for quiet indoor comfort.
Motor Family: BLDC + Integrated Controller
Performance: <45dB ultra-quiet | Inverter-ready | 90%+ efficiency.
Motor Family: PMSM
Performance: High torque density | Load-stability | Energy-saving

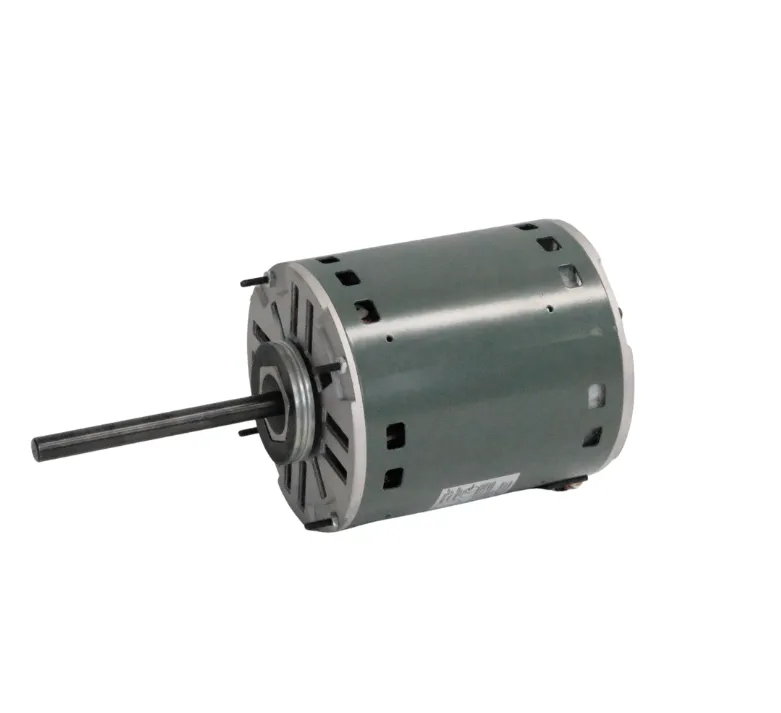

Motor Family: AC Induction
Performance: 24/7 industrial duty | Thermal-resilient | Robust torque
Motor Family: DC Brushed
Performance: Simple control | High-start torque | Cost-effective
Platform Shortlist + Option Spec + Validation Plan + Risk Checklist
HVAC motors must maintain stable airflow against fluctuating static pressure while operating in varying thermal environments. Success requires precise alignment with specific fan curves and inverter control logic—moving beyond nominal specs to ensure 24/7 system stability and acoustic comfort.
These platform families help us optimize within proven boundaries rather than forcing you into a fixed off-the-shelf model.
| Product Model | Rated power (HP) | Rated speed (r/min) | Rated torque (n· m) | frame size | Rated voltage (V) | Frequency (Hz) | Constant current (A) | Efficiency (η%) | Protection level |
|---|---|---|---|---|---|---|---|---|---|
|
BT16058LC1 |
0.5/0.75 |
2930/3470 |
2.0/2.5 |
56Y |
115 |
50/60 |
6.8/10.0 |
80.0/81.2 |
ODP |
|
BT16065LC1 |
0.66/1 |
2920/3470 |
2.7/3.4 |
56Y |
230 |
50/60 |
9.5/13.0 |
78.5/81.6 |
ODP |
|
BT16075EC1 |
1.1/1.5 |
2930/3490 |
4.0/4.5 |
56Y |
230 |
50/60 |
6.6/8.6 |
80.8/83.8 |
ODP |
|
VEV14075LCb |
1 |
3450 |
2.8 |
56J |
115/230 |
60 |
9.8/4.9 |
75.0 |
ODP |
|
VEV14095LCb |
1.5 |
3450 |
4.0 |
56J |
115/230 |
60 |
13.6/6.8 |
75.0 |
ODP |
Tailored for HVAC Motion Systems — We are your application-specific engineering partner.
Airflow and stability matching based on specific fan curves. Includes speed range planning and controller pairing for optimized BLDC/ECM systems.
Seamless voltage planning from 24V DC to global 380V AC. Ensures power stability, inverter compatibility, and international market compliance.
Custom shaft, flange, and blower coupling for Air Conditioner housings. Designed for zero-rework integration with existing fans and drainage systems.
Specialized insulation and thermal management for HVAC environments. Includes EMC pre-checks and acoustic vibration-damping options.
Ensuring AC & HVAC reliability through rigorous application-specific verification.
Endurance sampling based on continuous 24/7 duty cycles. Validates bearing grease life under consistent fan blade loads.
Temperature rise verification under representative AC/HVAC modes. Ensures stability in compact, low-airflow enclosures.
NVH checkpoints validated against indoor quietness standards for seamless AC indoor unit integration.
Rigorous controller pairing for AC outdoor & indoor units. Ensures inverter compatibility and global electrical safety.
Get Template
Maintaining consistent SEER rating across extreme ambient temperatures (-20°C to 55°C) while minimizing compressor-sync vibration.
Adaptive Sine-Wave control for BLDC platforms combined with weatherproof IP54-rated enclosures and resonance-damping motor mounts.
Zero-leakage condensate testing performed; 1,000-hour salt spray resistance verified; Airflow stability audited under high-static pressure.
Choose BLDC for cost-effective variable speed in standard fans; select PMSM for high-efficiency, sensorless control and ultra-low vibration in premium inverter AC units.
Please provide the Fan Curve, target Airflow (CFM/CMH), and Static Pressure Drop. This allows us to map the ideal motor torque/speed platform.
Beyond <45dB sound pressure, we audit NVH harmonics and resonance damping under specific housing loads to ensure zero-acoustic-drift during nighttime modes.
